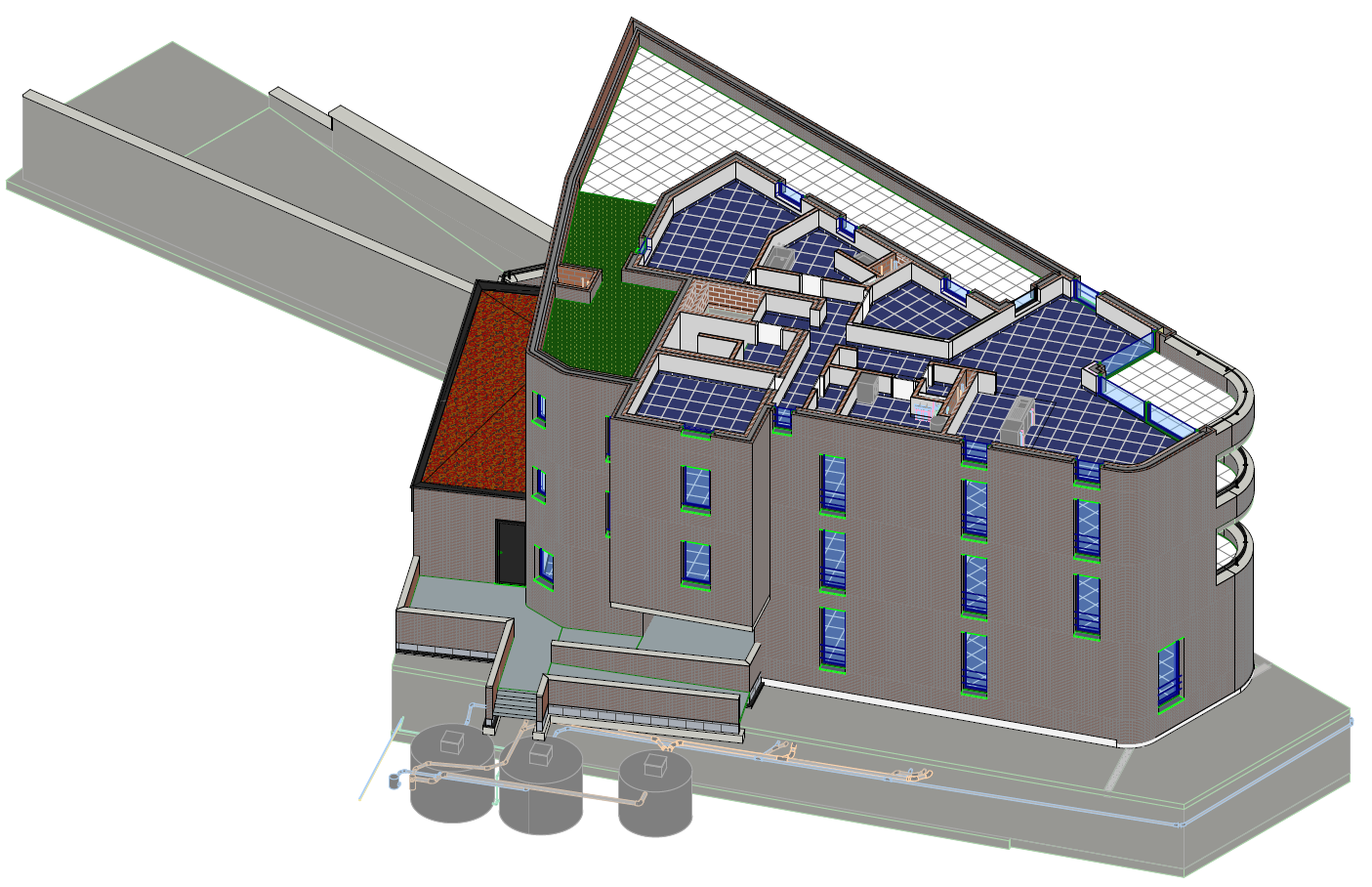

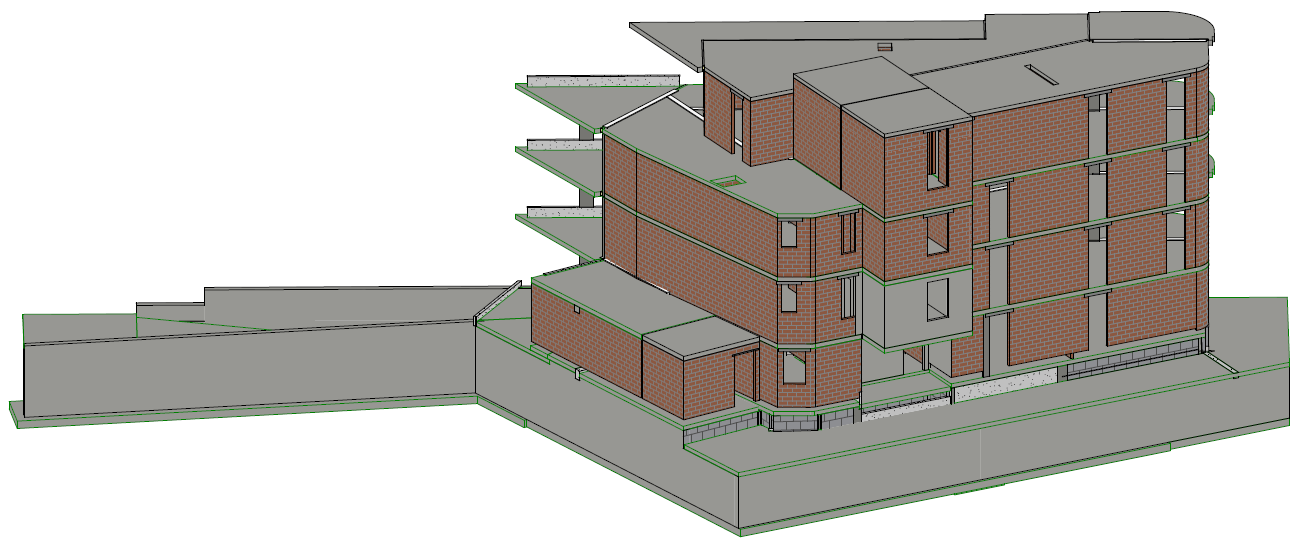

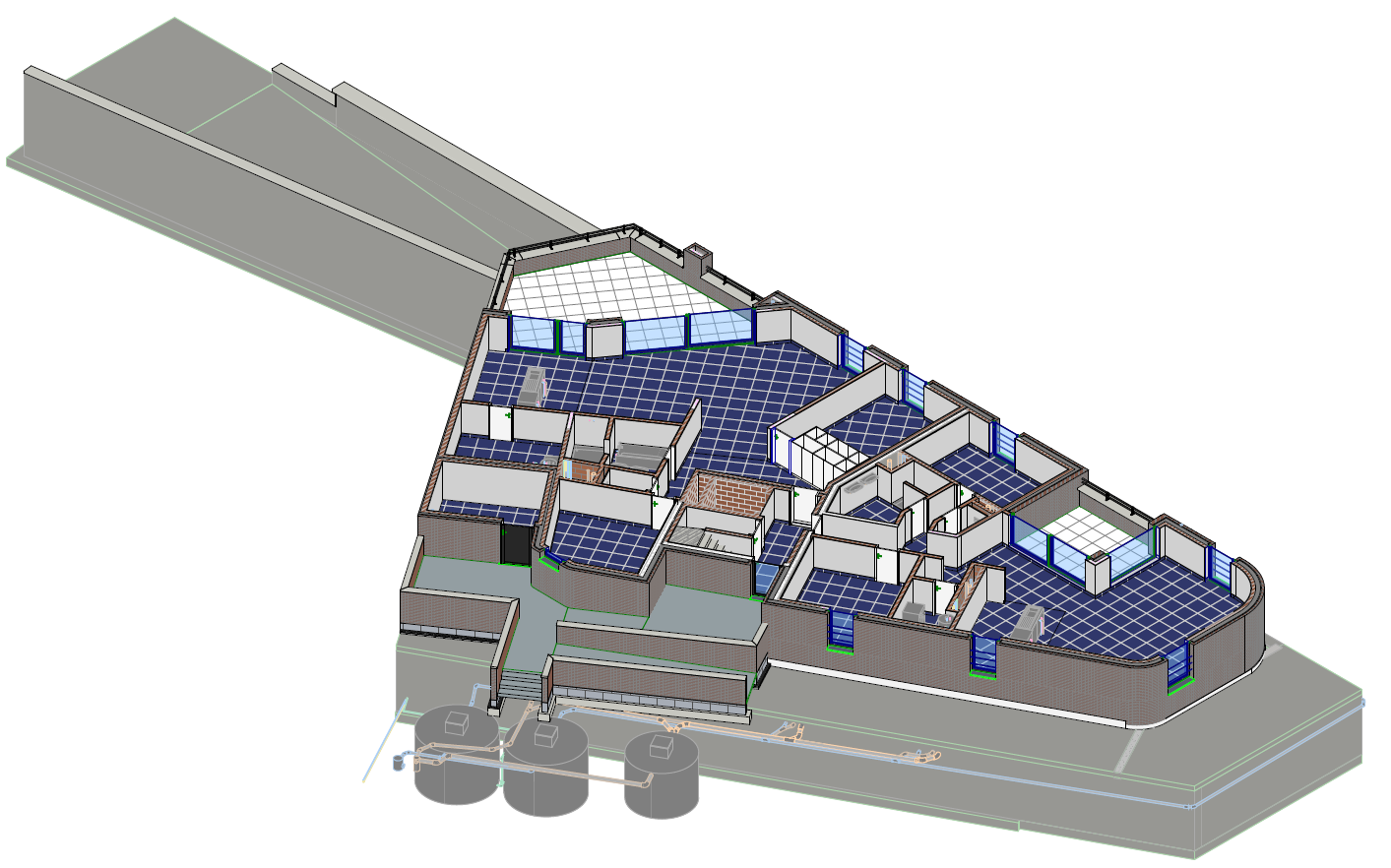

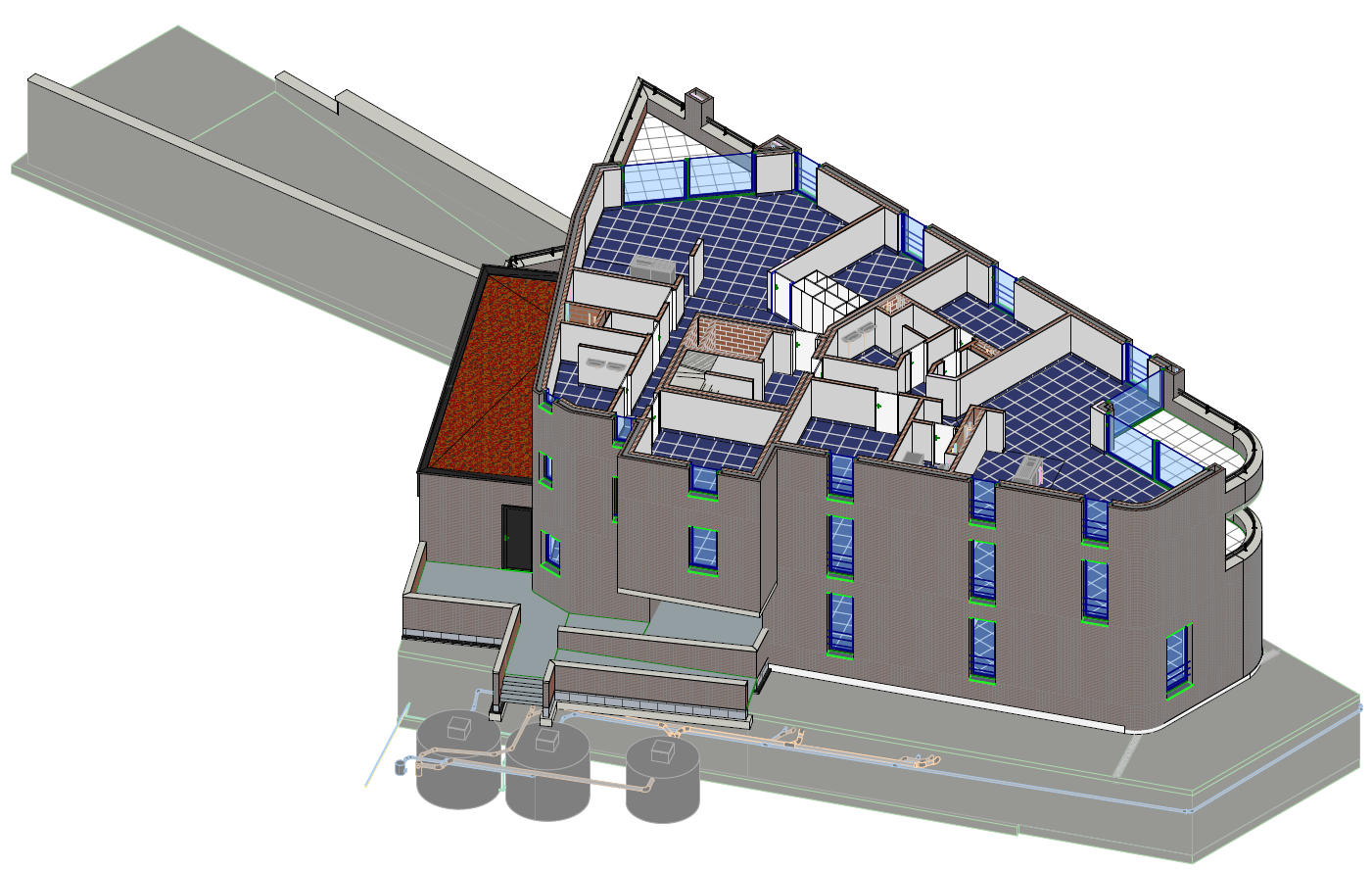

Using Revit and Civil 3D, I recreated the original plans for the appartement building located at Auwegemvaart 198 (official address: Battelsesteenweg 495, B-2800 Mechelen) in 3D. I followed the Belgian Revit Standards for naming and modeling conventions.

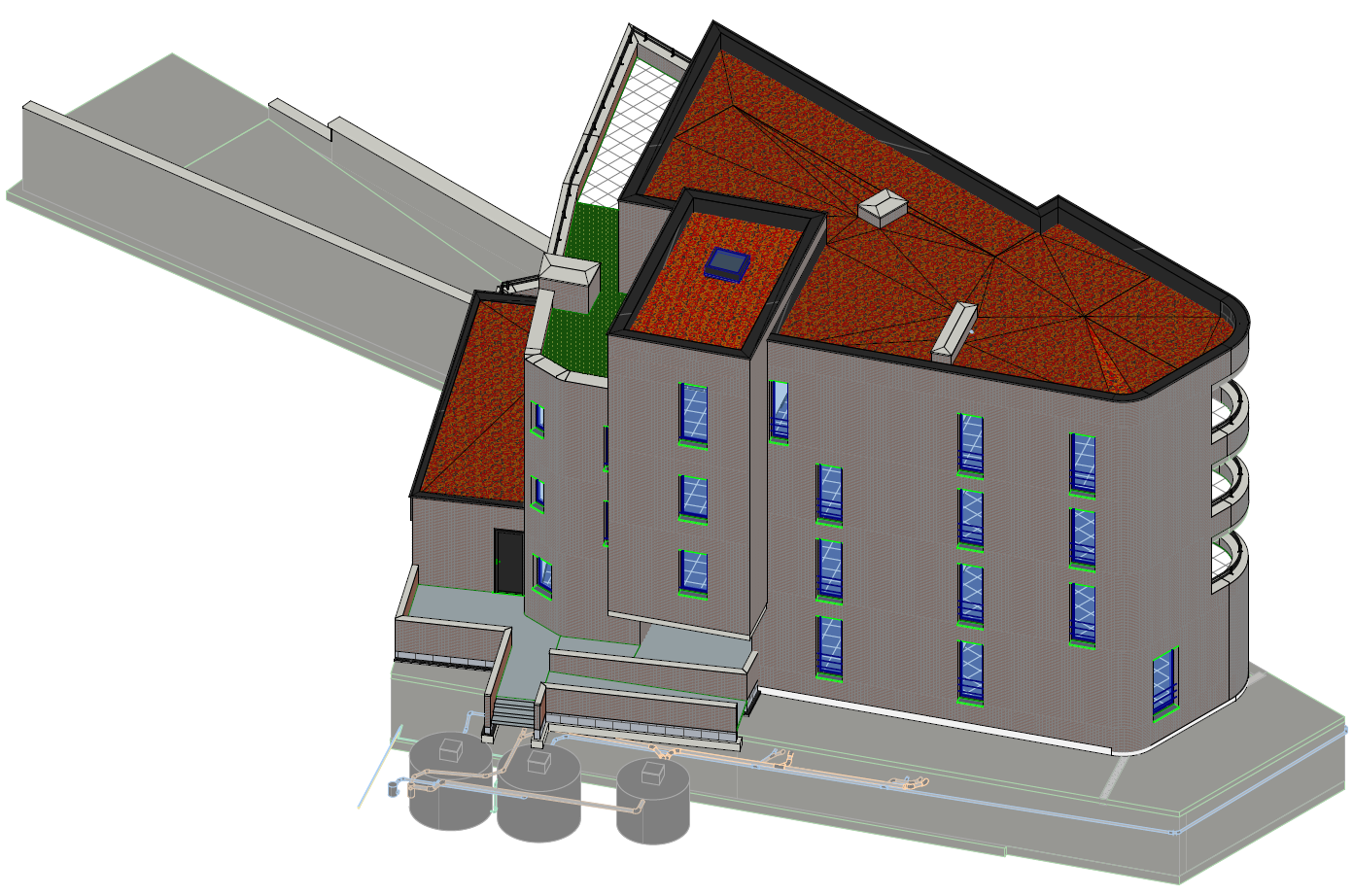

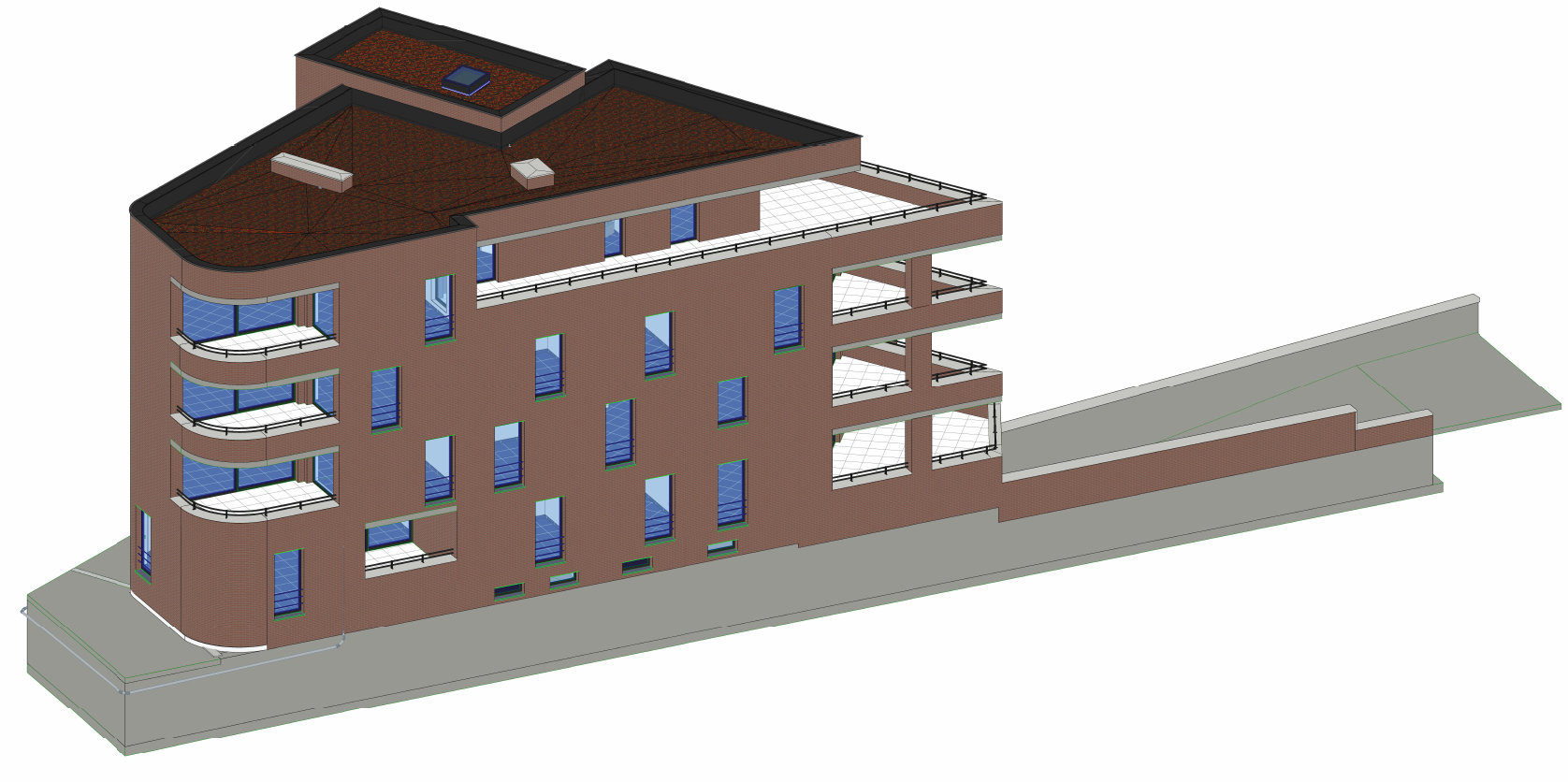

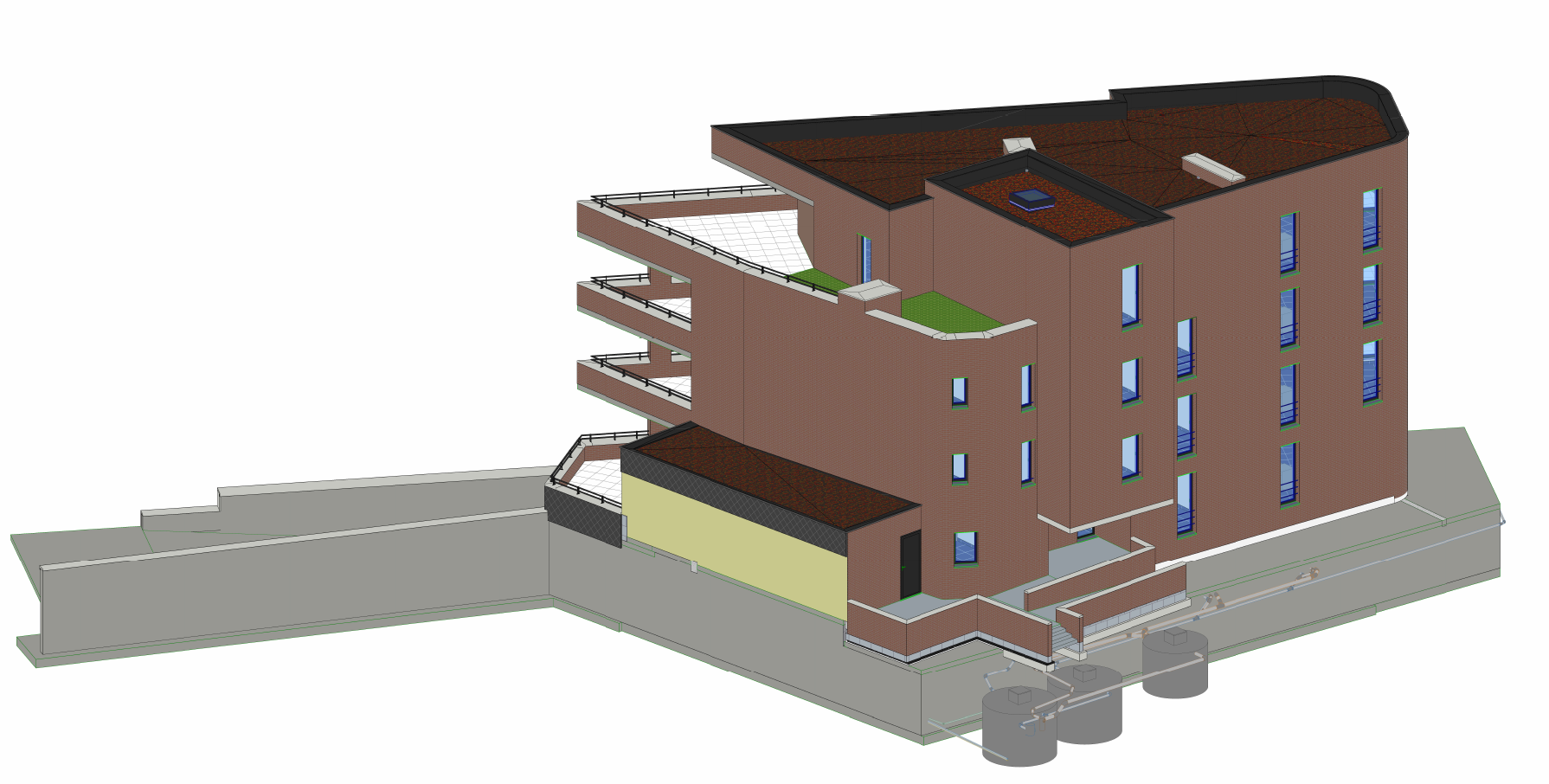

Visualizations were done in Twinmotion, using the BIM-model created Revit.

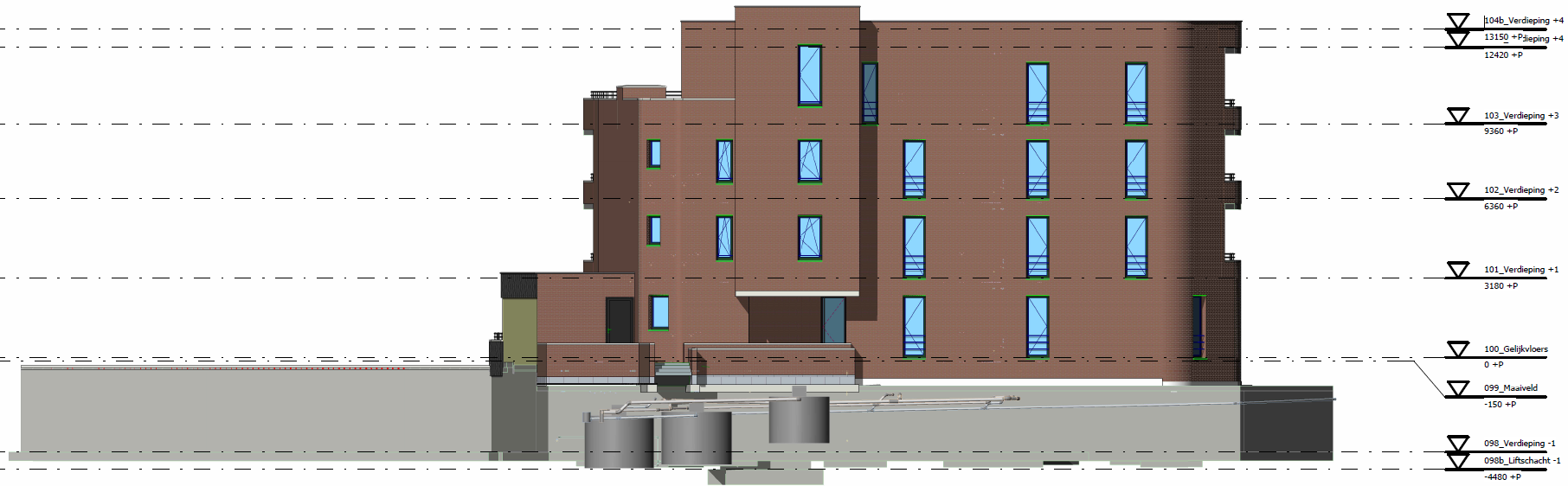

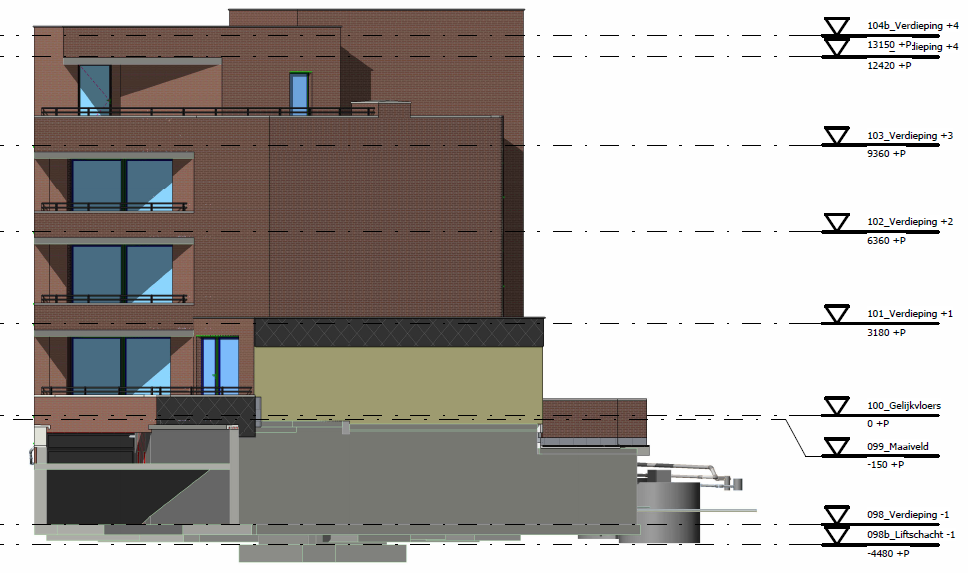

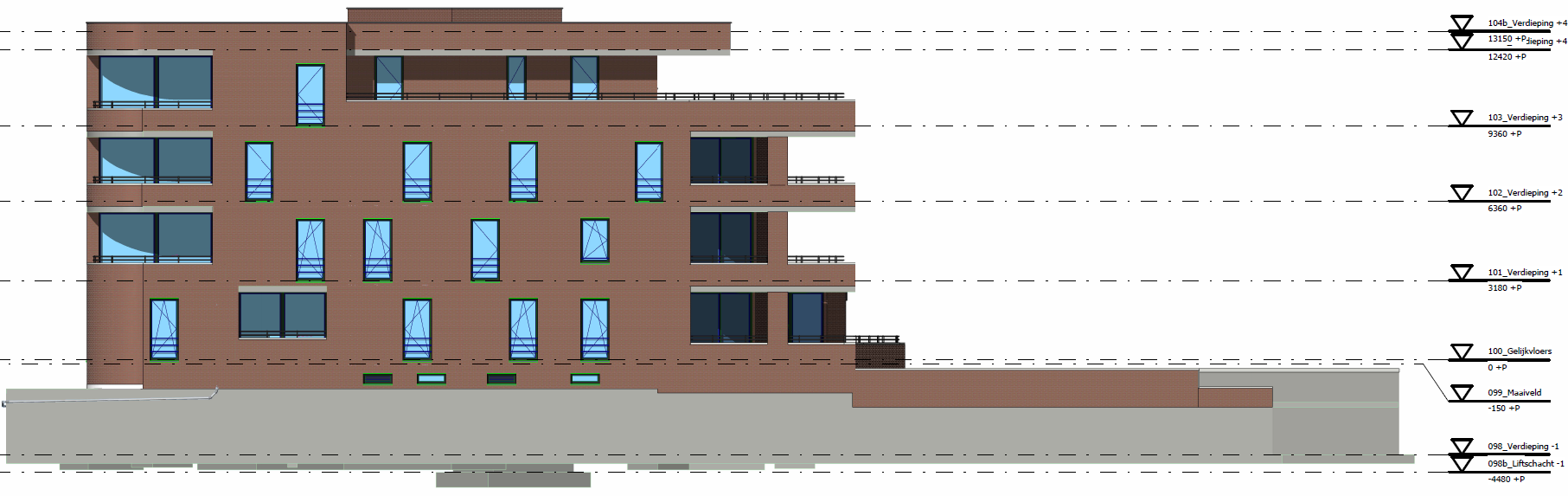

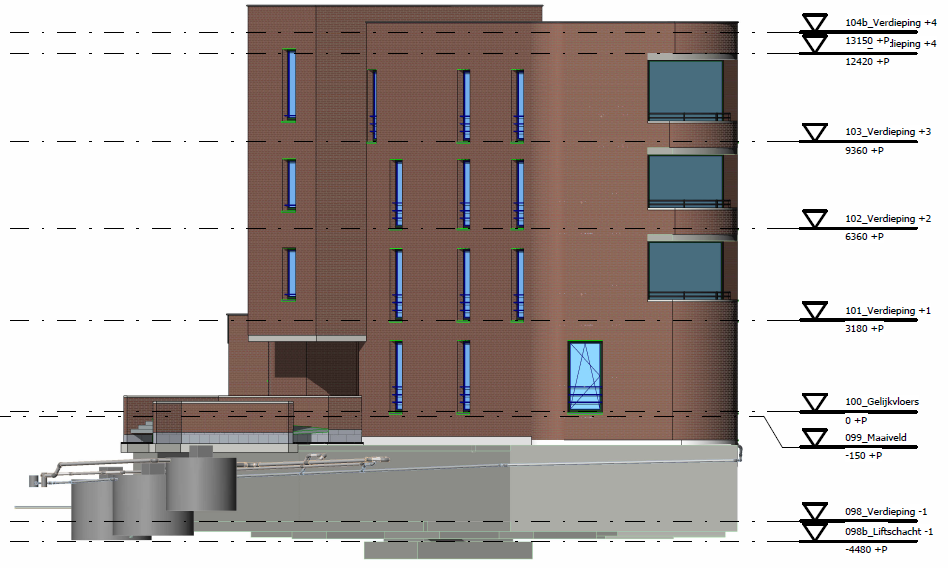

Aanzichten
Noord
Oost
Zuid
West
Snedes

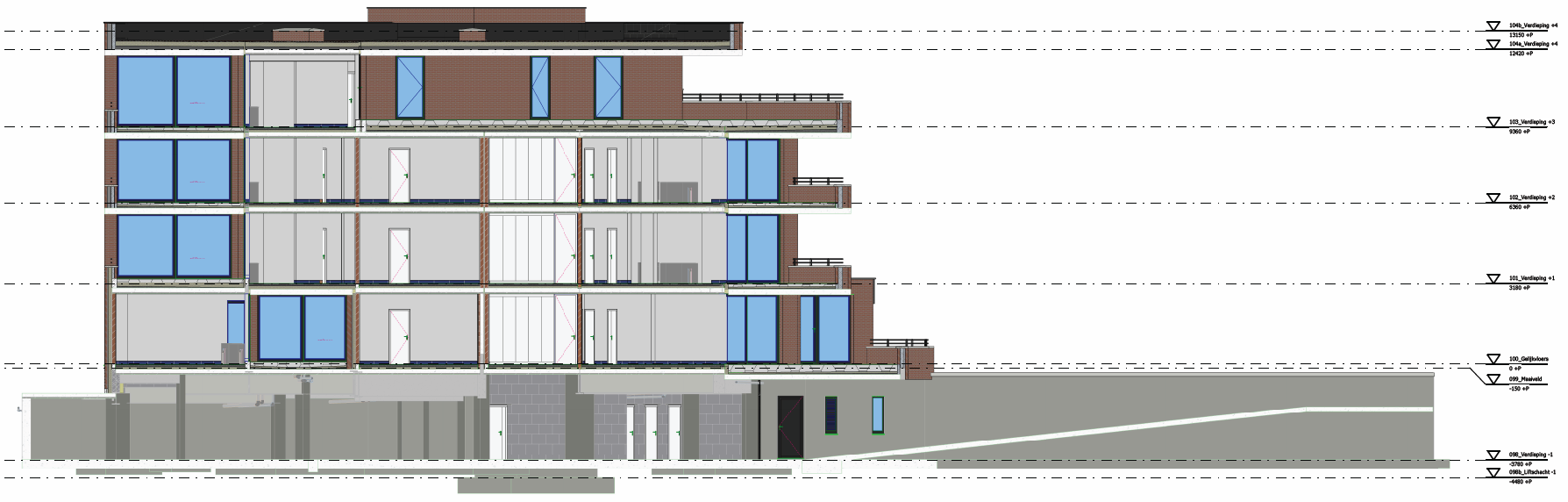

Snede BB'
Snede CC'

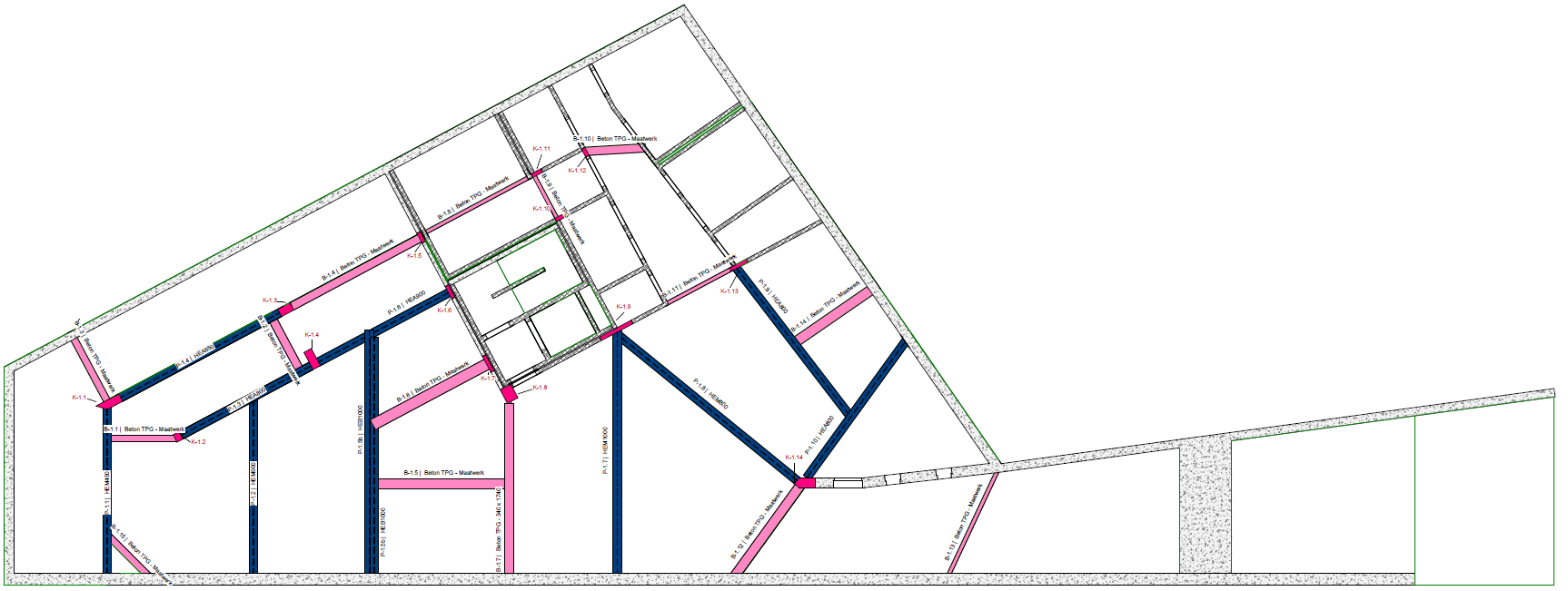

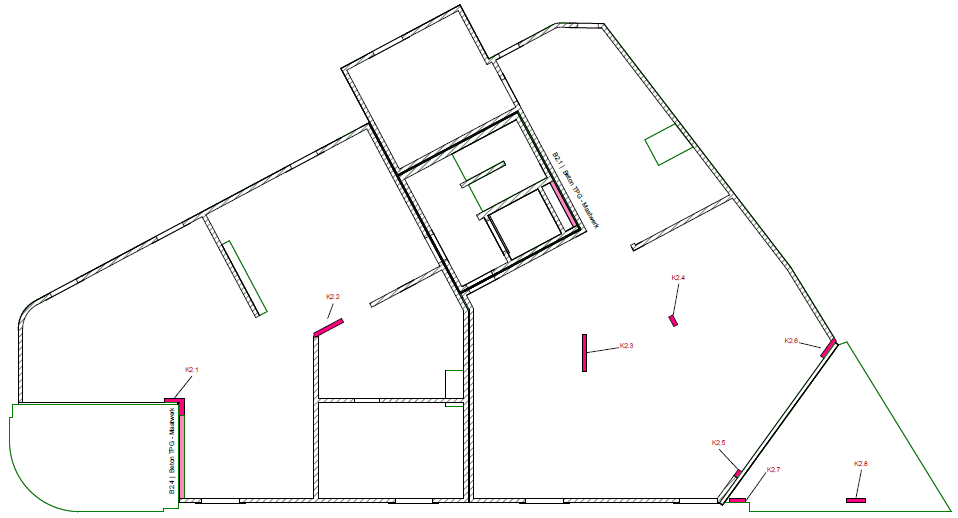

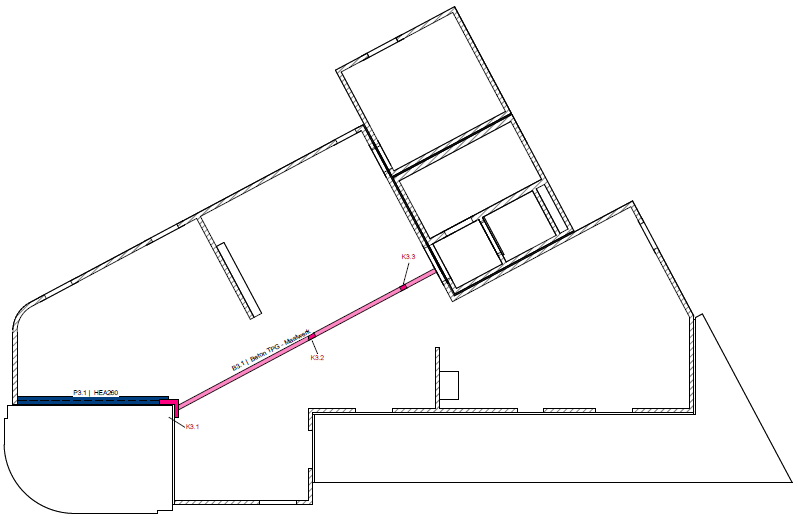

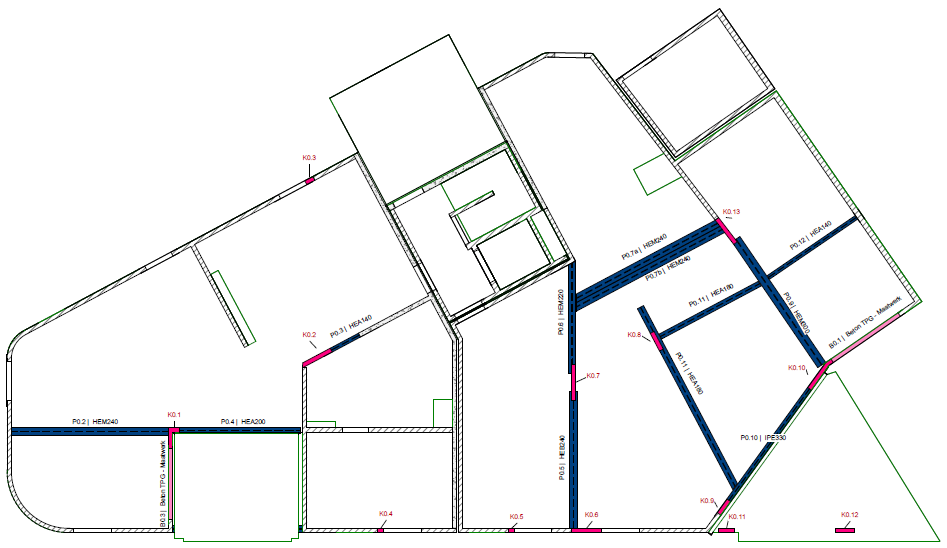

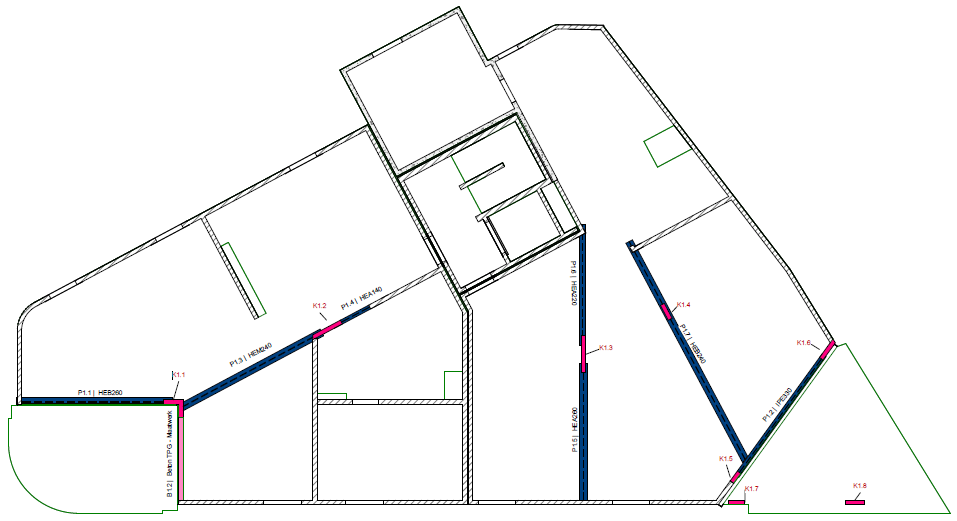

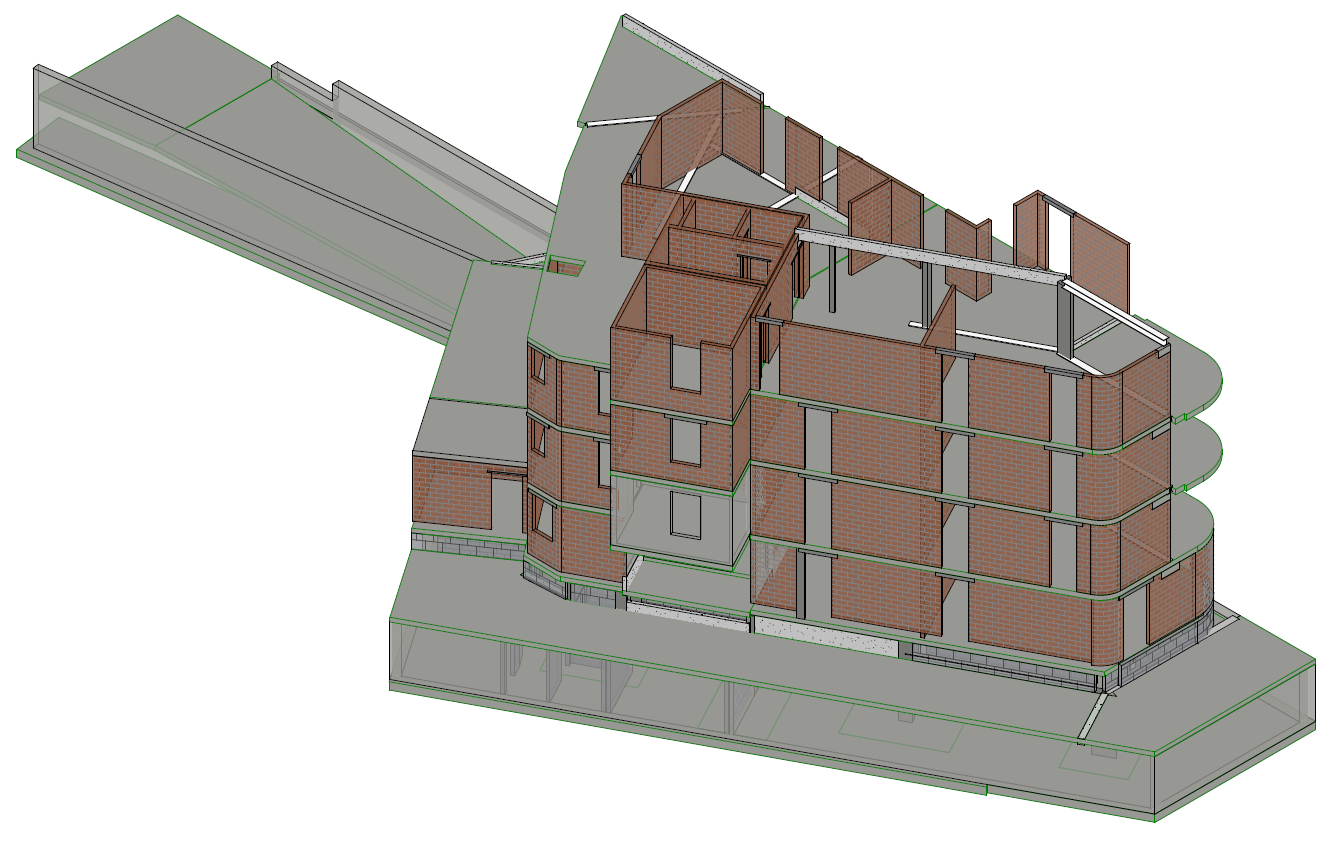

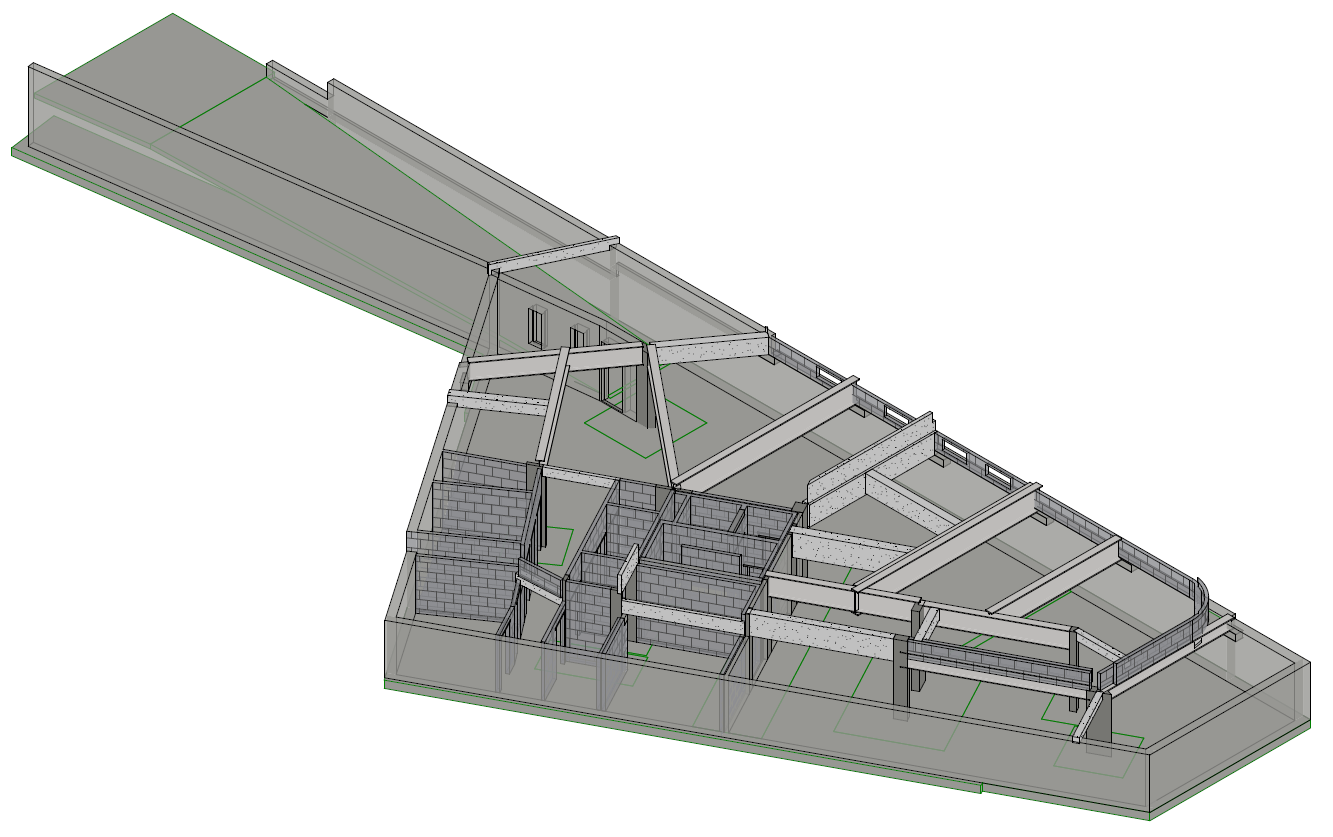

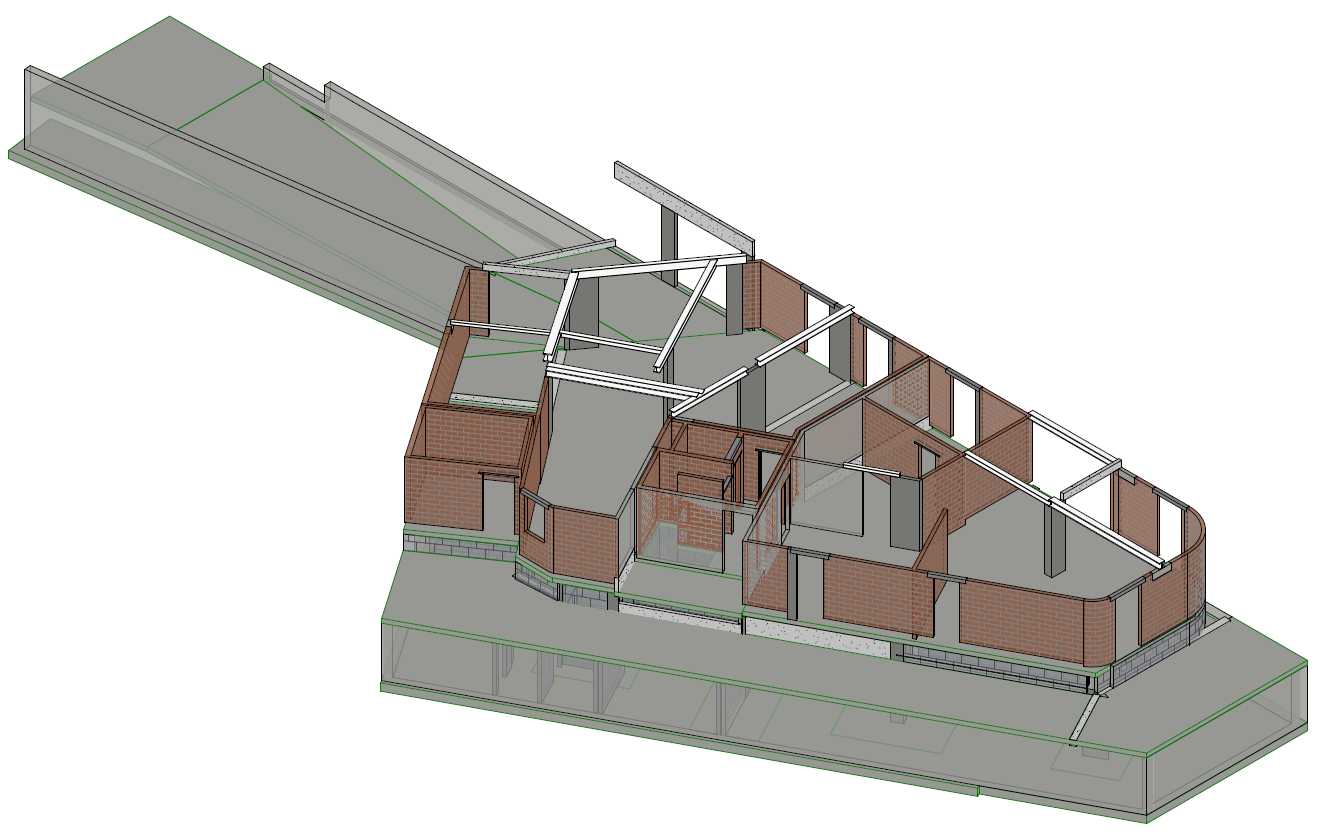

STRUCTUUR

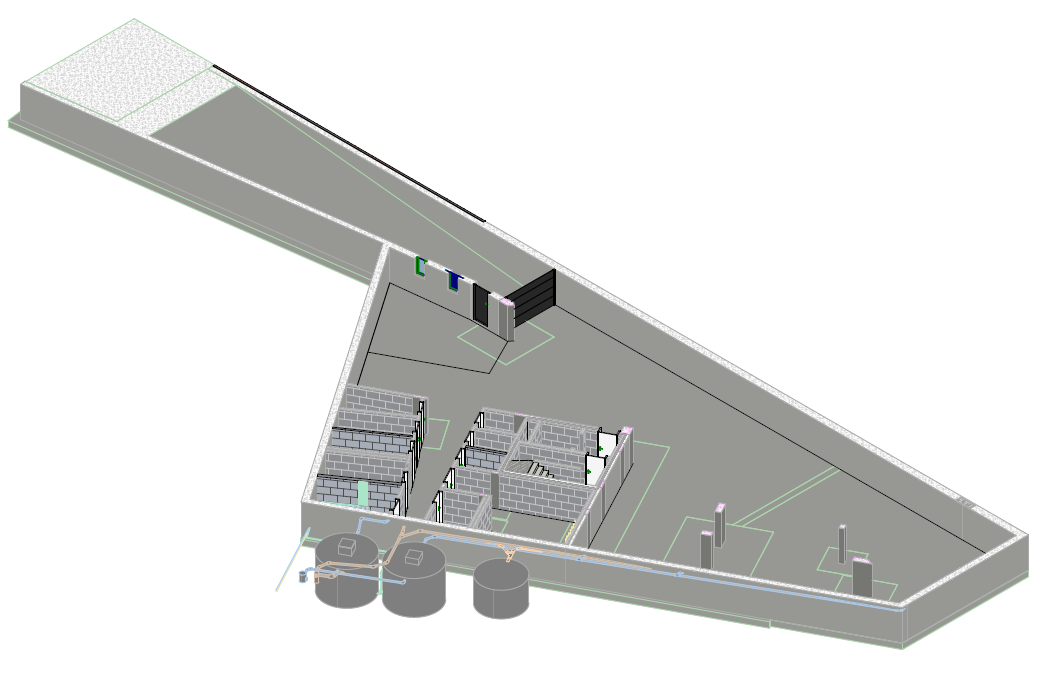

Kelder
Gelijkvloers
Verdieping 1
Verdieping 2
Verdieping 3
Dakverdieping
Kelder
Gelijkvloers
Verdieping 1
Verdieping 2
Verdieping 3

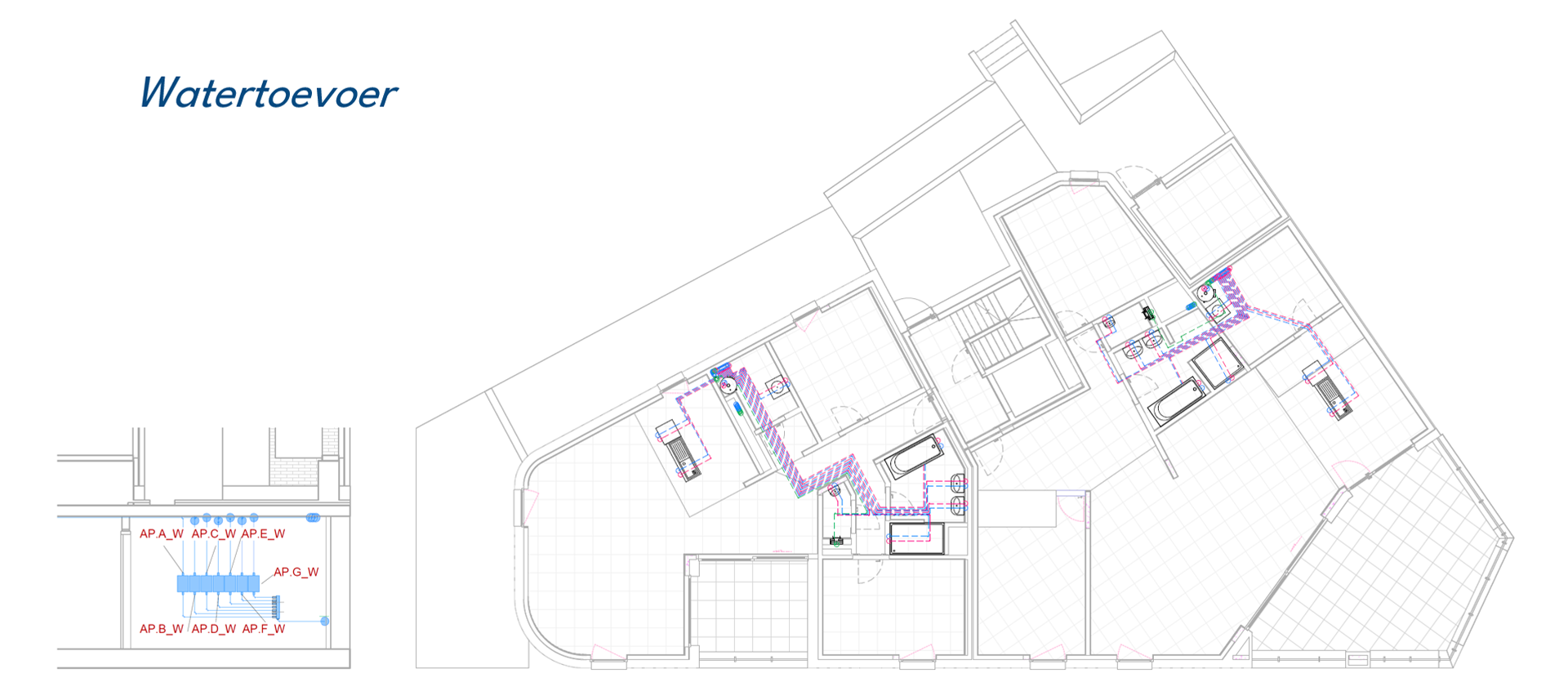

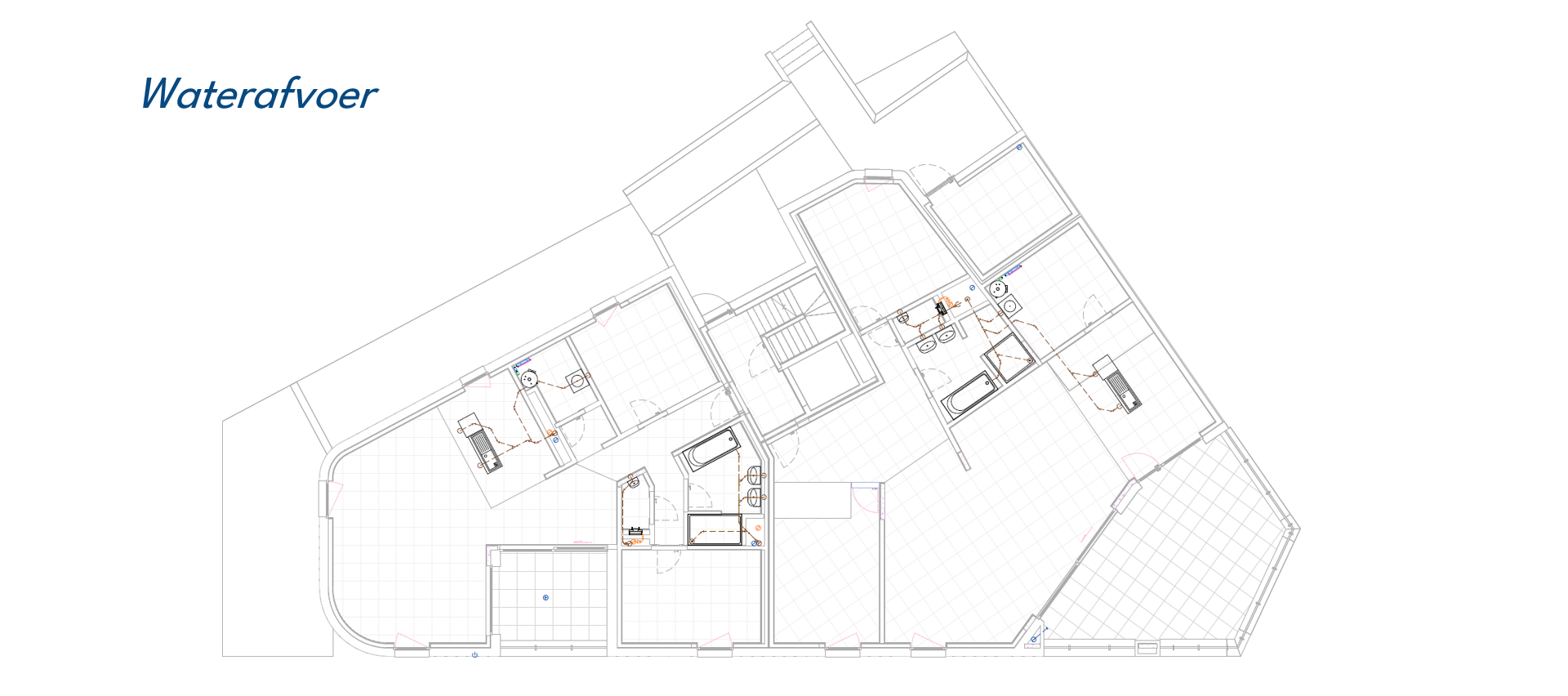

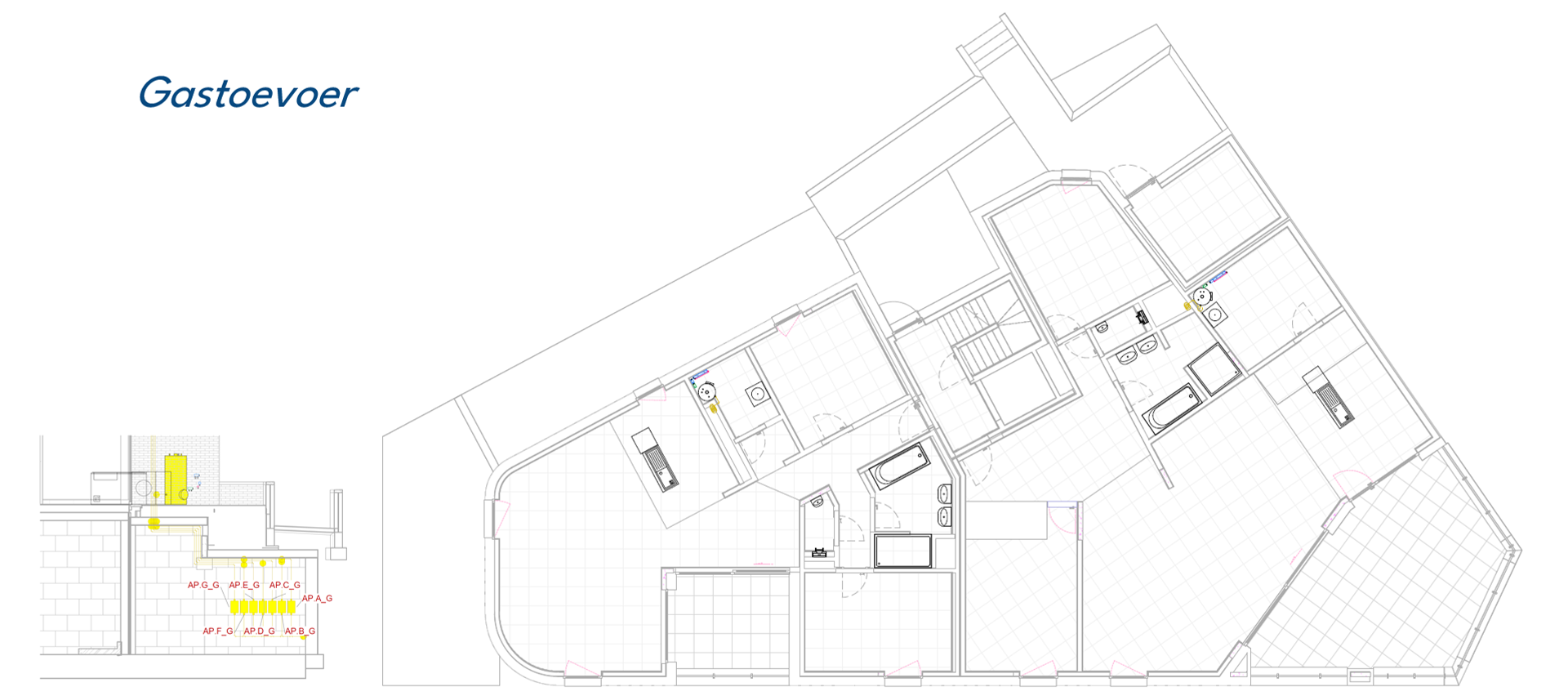

MEP

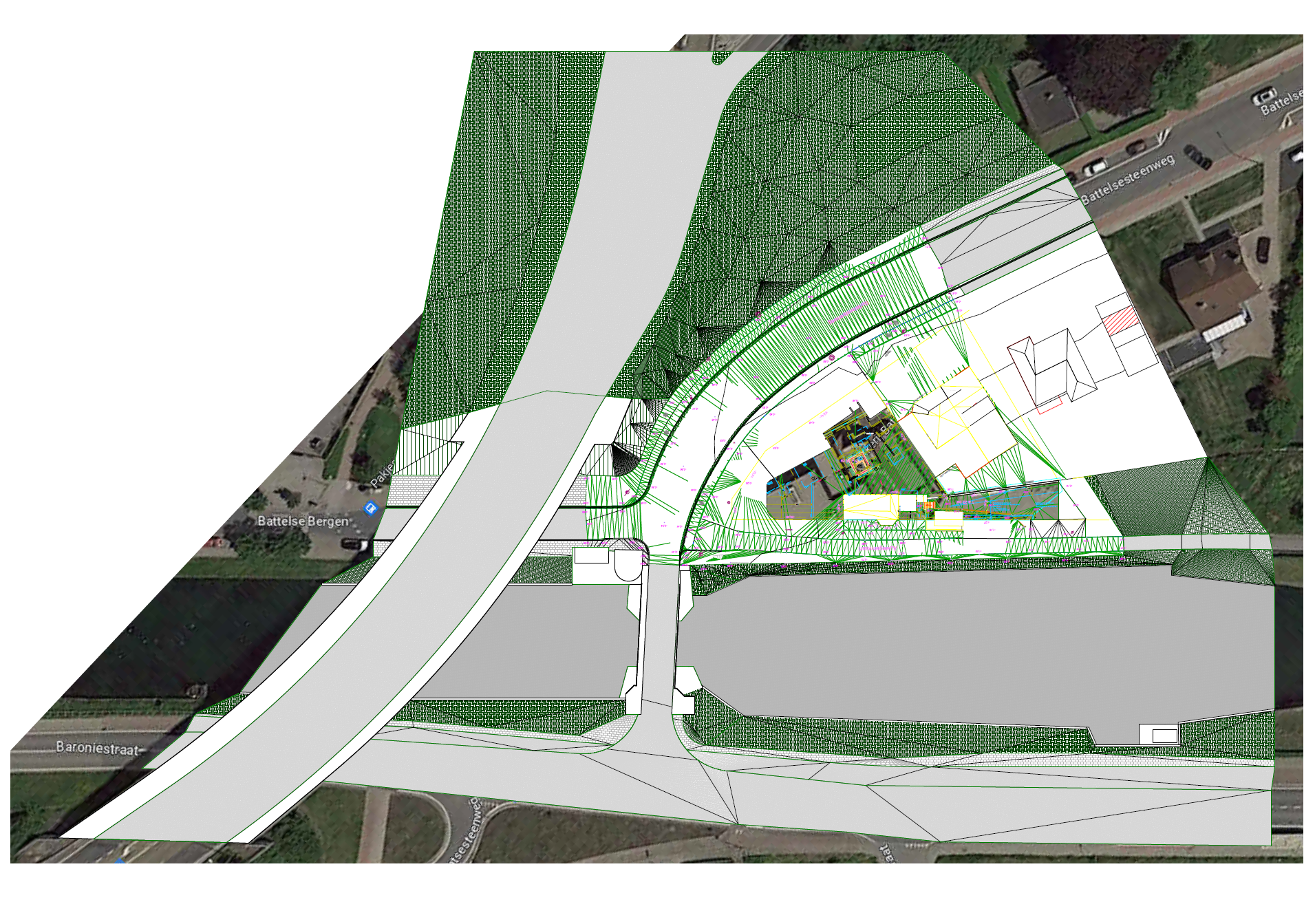

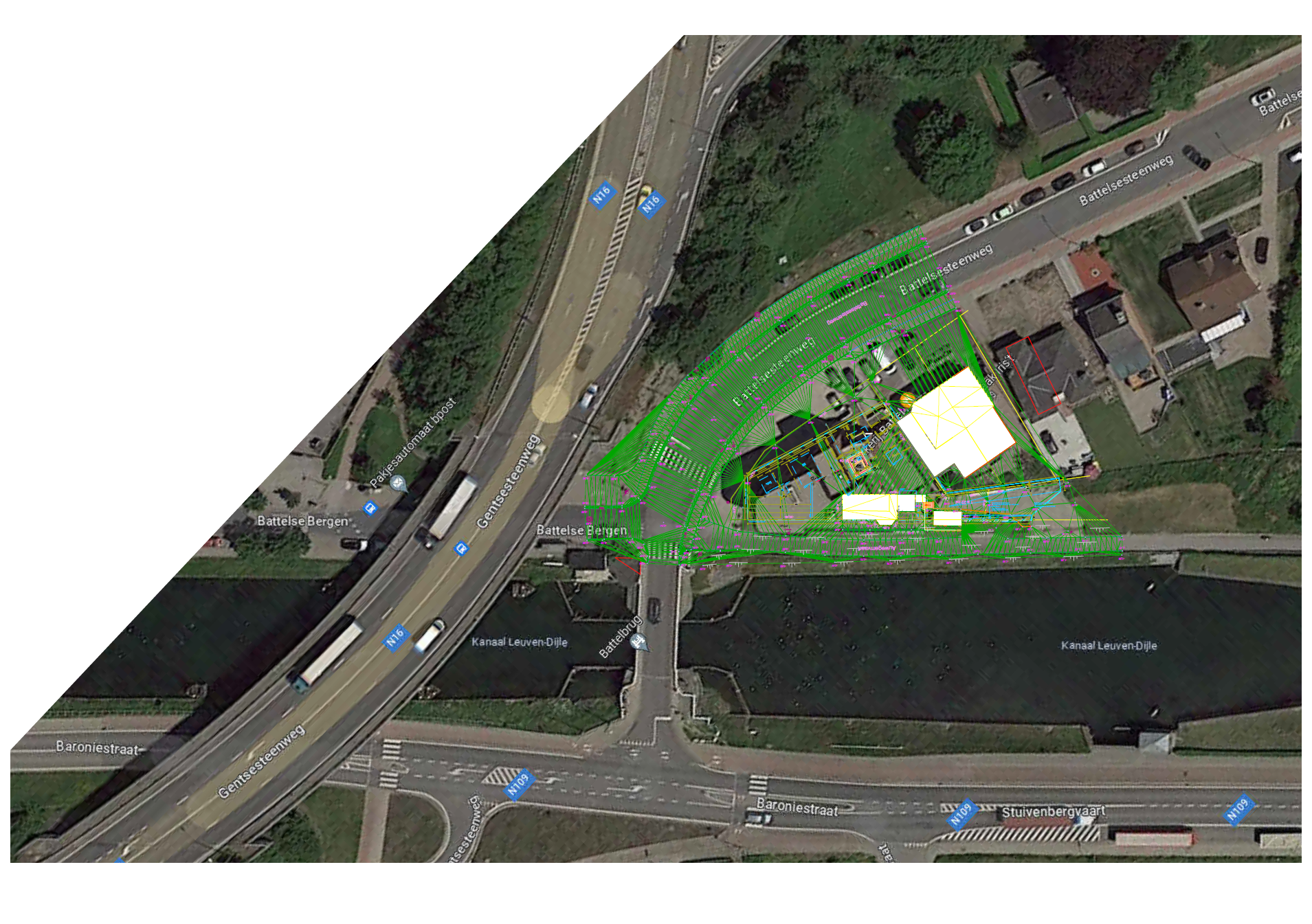

TOPOGRAPHY

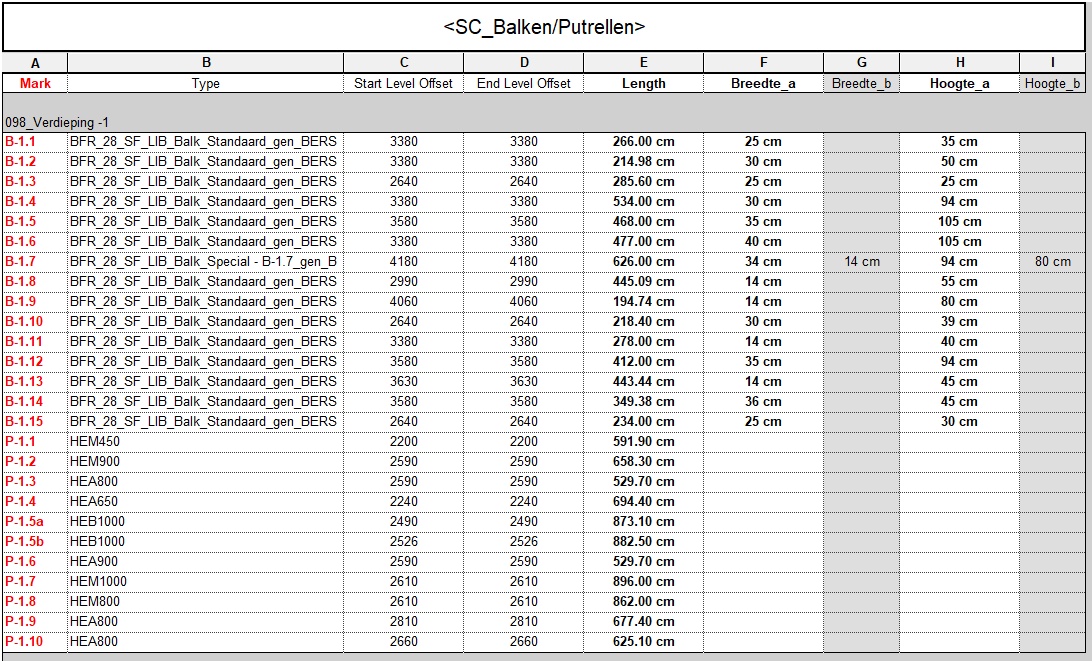

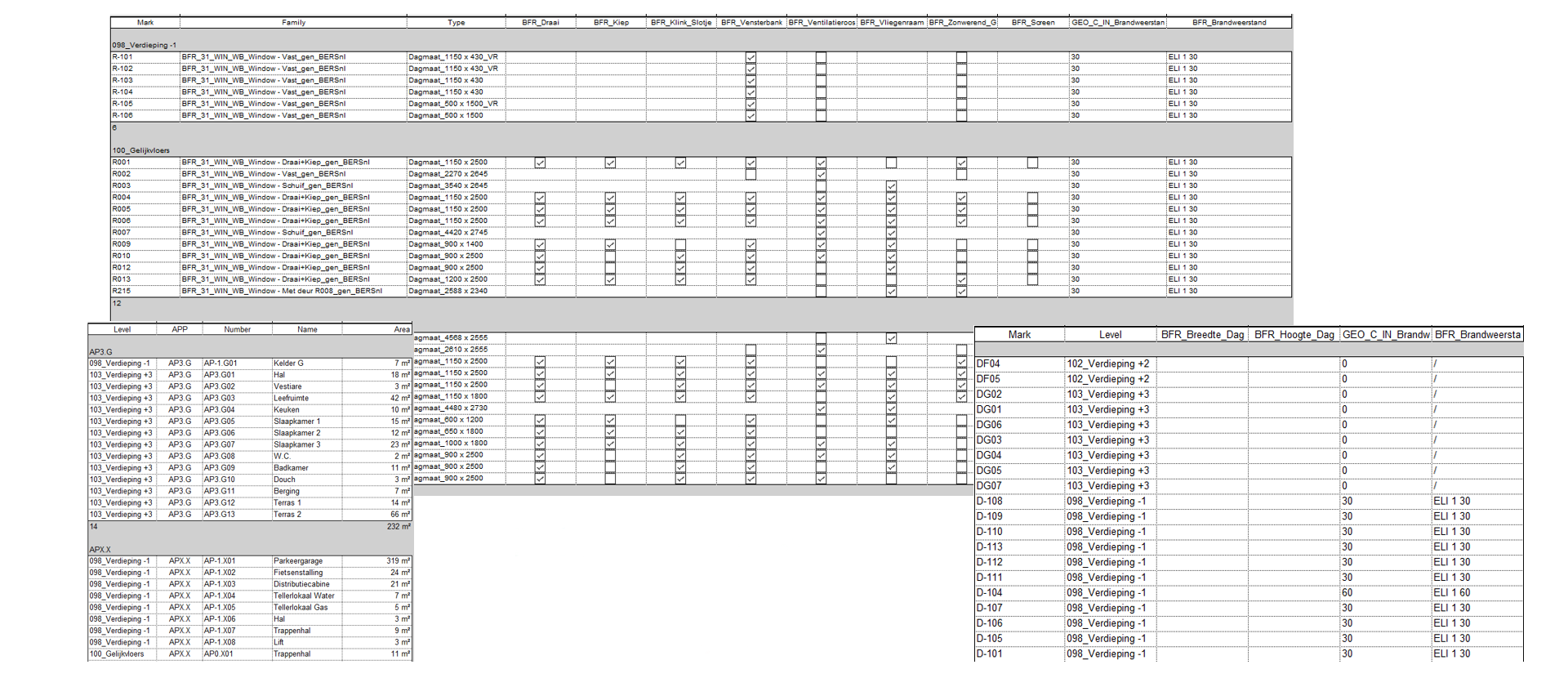

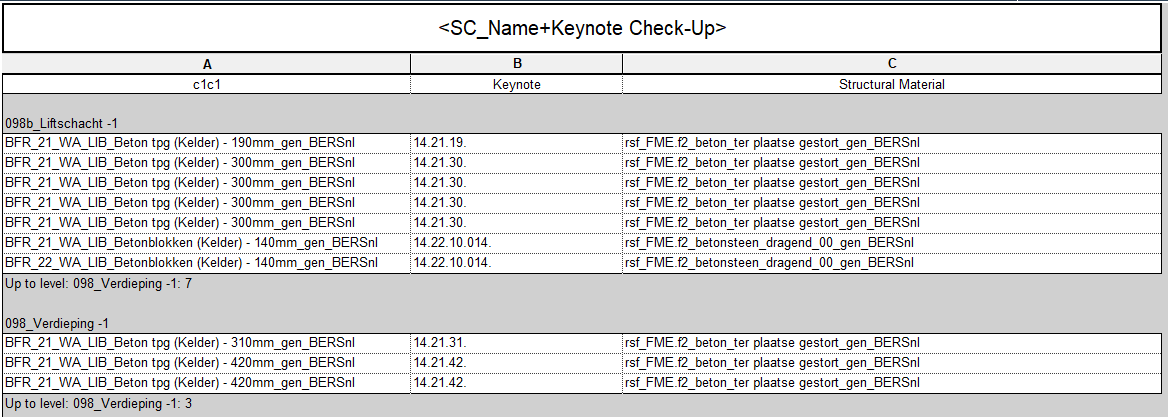

Controle schedules

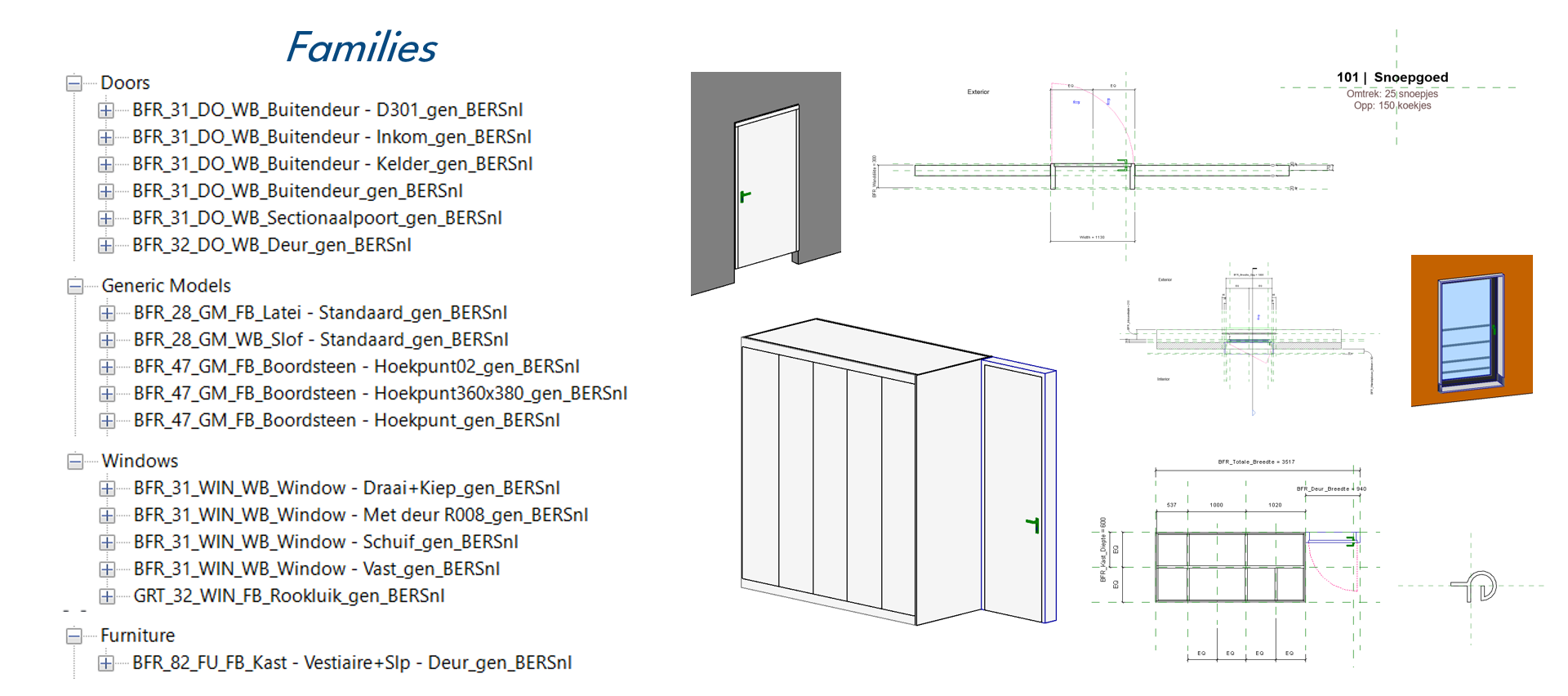

FAMILIES
RENDERS
